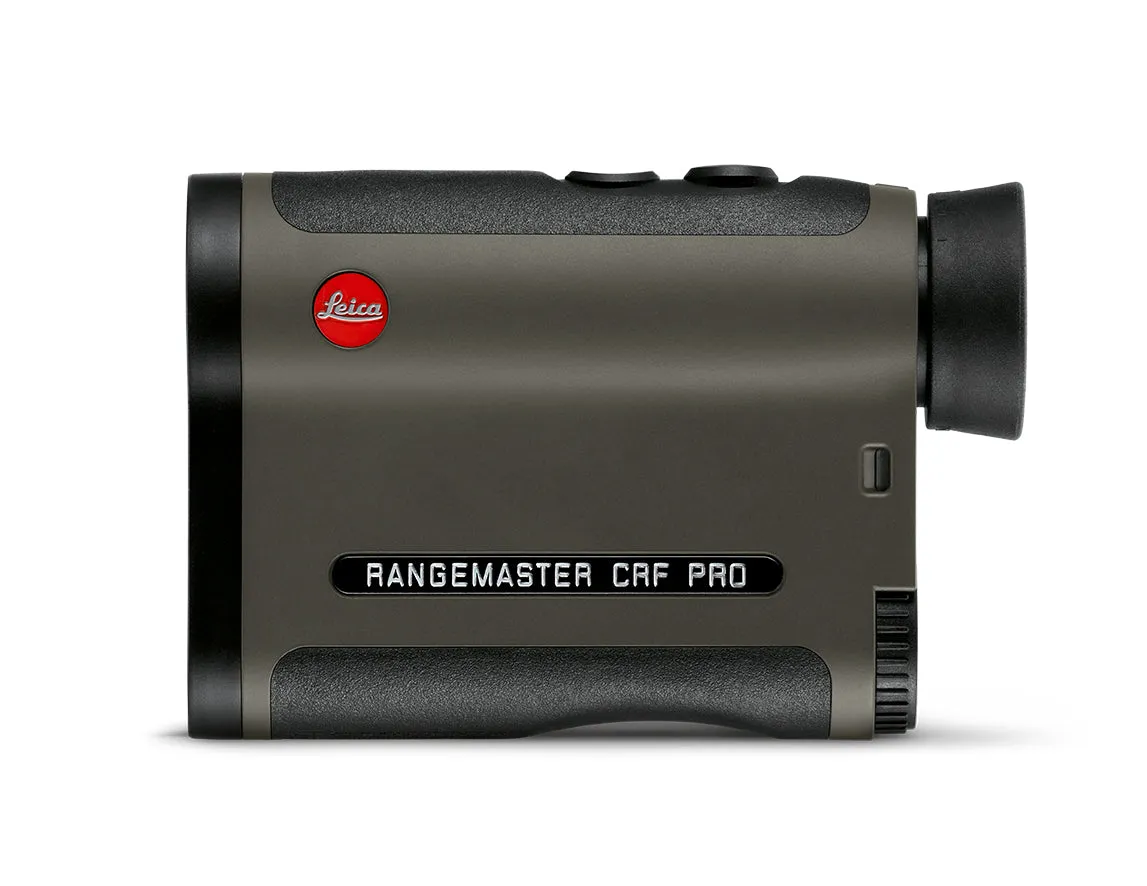

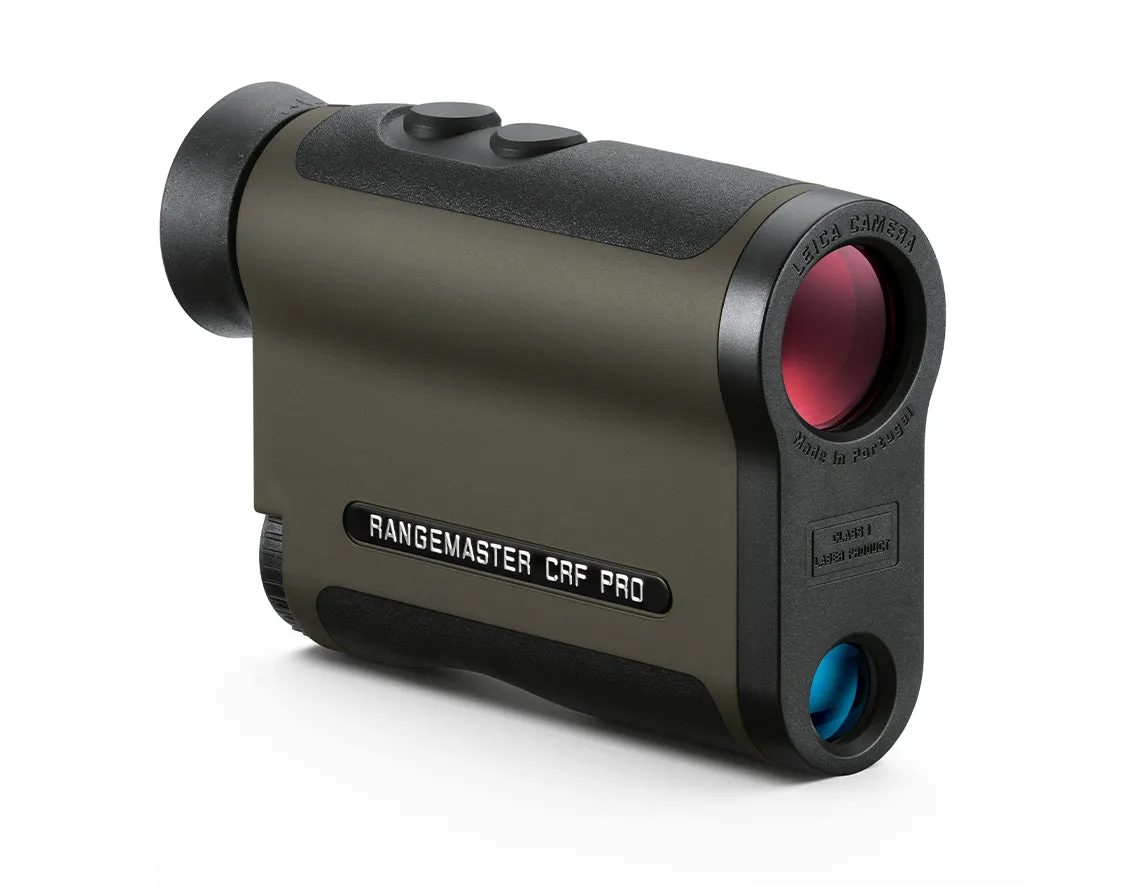

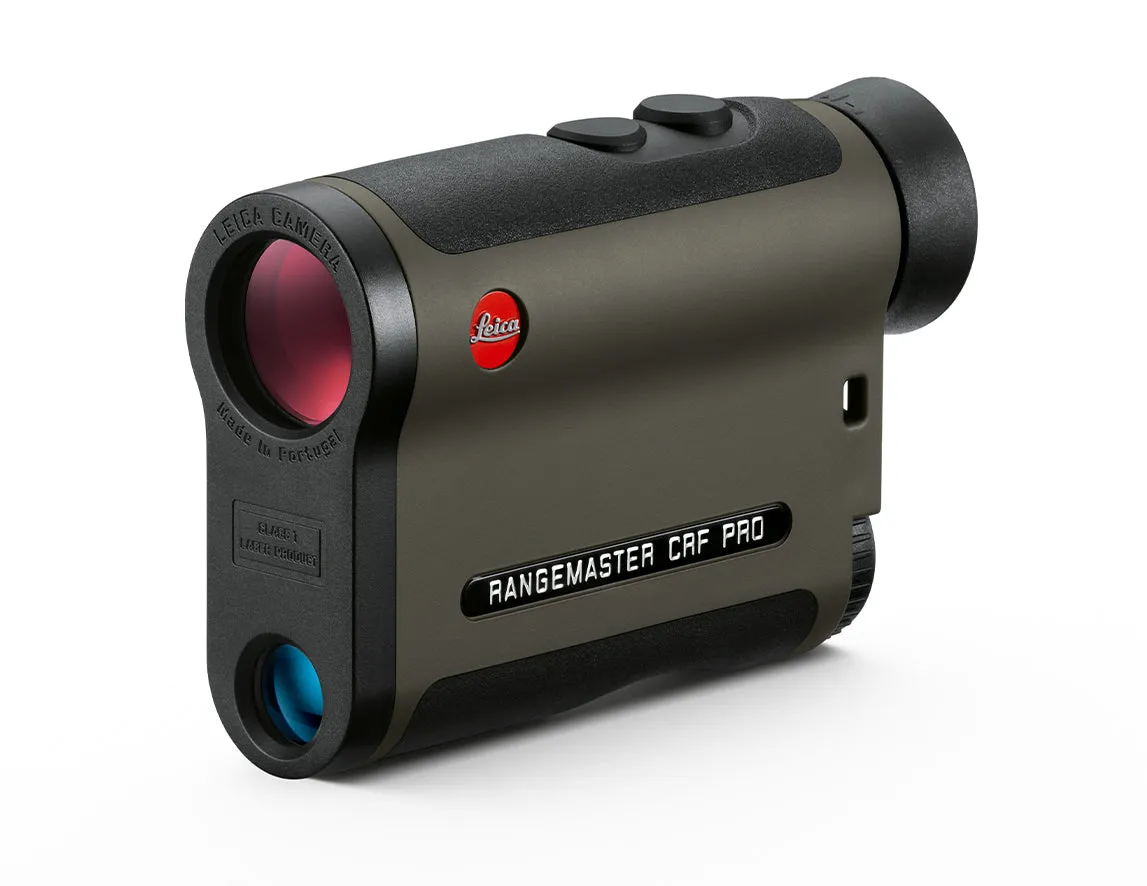

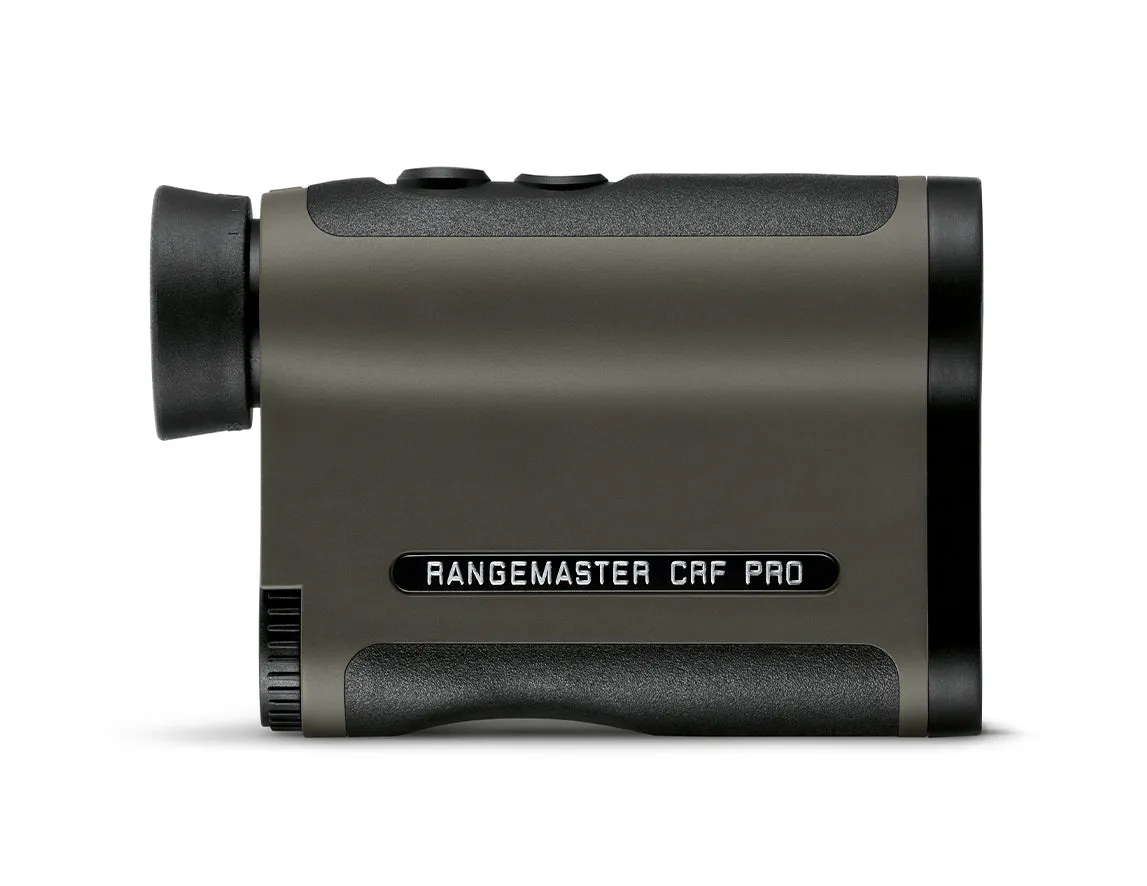

The new Leica Rangemaster CRF PRO 40547 is Leica most powerful compact rangefinder. It’s the ultimate specialist for long-range shooters, alpine hunters, and hunters abroad. Exceptional ballistics performance and a range of up to 2,600 meters leave nothing to be desired. Thanks to the integrated ballistics program Applied Ballistics Ultralight, the Leica Rangemaster CRF Pro can rapidly calculate the equivalent horizontal range, as well as the correction values for holdover, units, and clicks – even in very complex shooting situations and adverse weather conditions.
SPECIFICATIONS:
Magnification: 7 x
Front lens diameter: 24 mm
Exit pupil: 3.4 mm
Field of view at 1,000 yds / 1,000 m: 115 m / 405 ft
Close-up range: 10 m / approx. 16 ft
Diopter compensation: /- 3.5 dpt.
Display: LED display with 4 digits, automatic brightness control
Eyecups: Turn-down rubber eyecups
Lens Coating: High Durable Coating (HDC™) and hydrophobic Aqua-Dura® coating on outer lenses
Prism system: Roof prisms with phase-correction coating P40
Laser Type: Eye-safe, invisible Class 1 laser acc. to EN and FDA
Measuring accuracy:
/- 0.5 m at 10-200 m, /- 0.5 yds at 10-219 yds,
/- 1.0 m at 200-1000 m, /- 1.0 yds at 219-1093 yds,
/- 0.5 % beyond 1000 m, /- 0.5 % beyond 1093 yds
Measuring time: Maximum approx. 0.3 s (max.)
Measuring methods: Scan mode / single measurement
Measuring range for equivalent horizontal range (EHR):
10 m to approx. 2,600 m / 2,800 yds
Measurement logic: Optimum target
Range: 10 to approx. 1800 m / 2000 yds
Range (EHR): 10 to approx. 1800 m / 2000 yds
Equivalent horizontal range (EHR): 10 m to approx. 1100 m / 1200 yds
Correction output with Applied Ballistics® Ultralite (standard): Max. 800 m / 875 yds
Correction output with Applied Ballistics® Elite (upgrade): Max. 2,600 m / 2,800 yds
Ballistics calculator: Yes
Output „equivalent horizontal range“ (EHR): Yes
Output „unit correction“ for elevation and lateral correction: Yes
Output „click correction“ for elevation and lateral correction: Yes
On-board wind correction: Yes
Upgrade to Applied Ballistics® Elite with creation of customised ballistic profiles: Yes
GPS Guidance LPTTM (Leica ProTrack): Yes
Connection with external apps: BaseMap®
Wireless connection: Bluetooth®
Connection Leica Ballistics App: Possible
Connection with Kestrel® / Garmin®: Possible
Sensors: Temperature, air pressure, inclination, compass
Waterproof rating: Waterproof to 1 m / 3.2 ft
Battery: 1 x 3 V / Lithium type CR2
Battery lifetime: Approx. 1,700 measurements at 20 °C / 68 °F*
Housing material: Polyamide ABS plastic
Dimensions (W x H x D): 113x78x35 mm / 4.44x3.07x1.37 in
Weight: Approx. 185 g/6.52 oz
SKU: 40547
